What is the memory wall in simple terms?

It is the growing gap between how fast a chip can do calculations and how fast it can get data from memory. Because compute improved much faster than memory bandwidth, modern processors spend most of their time waiting for data rather than computing.

Why is the memory wall a problem for AI?

Generating each token of a large language model requires reading the entire model's weights from memory. The math is cheap; moving the weights is expensive. So AI inference is limited by memory bandwidth, not by raw compute — especially at low batch sizes.

How can the memory wall be solved?

By moving memory closer to compute. SRAM and HBM widen or speed up the data path but keep memory separate. Monolithic 3D integration removes the distance altogether by growing memory directly above the logic, so data travels microns instead of centimeters.

What Is the Memory Wall in AI? A Plain-English Guide

The memory wall is the widening gap between how fast a processor can perform calculations and how fast it can move data in and out of memory. The idea was first described in the mid-1990s, when researchers noticed that processor speed was improving far faster than memory speed — so over time, more and more of a chip's wait was spent on memory rather than math. Three decades later, AI has turned that observation into the single most important constraint in computing.

The reason is simple arithmetic. A large language model is mostly a giant pile of weights — numbers that must be read from memory and multiplied against the input. The multiplication itself is cheap. Reading the weight is not. On today's hardware, fetching a weight from off-chip memory can cost many times the energy and time of the calculation it feeds, so the processor spends most of its life waiting for data to arrive.

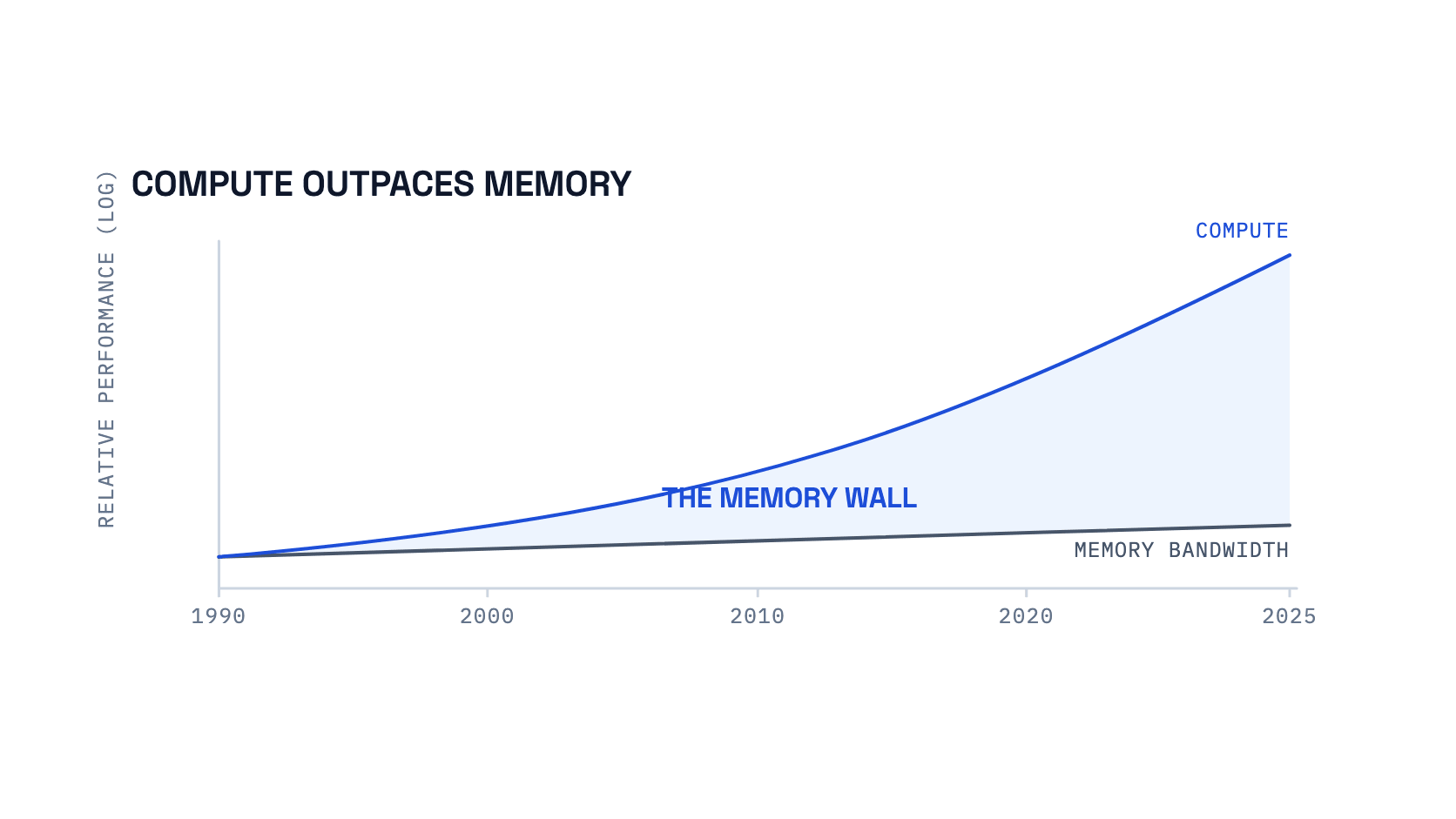

Over three decades, compute throughput has climbed far faster than memory bandwidth, opening the widening gap engineers call the memory wall.

Why the memory wall hits AI inference hardest

AI inference — the act of generating text one token at a time — is read-dominated. To produce a single token, the chip must stream the entire model's weights out of memory exactly once. There is nothing to reuse and nothing to hide behind. This is why running a chatbot at batch size one is bandwidth-bound: the limiting factor is not how many trillions of operations per second the chip can do, but how fast it can pull the model out of memory. A flagship GPU with enormous peak compute can still be reduced to roughly a hundred tokens per second on a large model, simply because every token waits on the memory bus.

Is the memory wall the same as the von Neumann bottleneck?

They are closely related but not identical. The von Neumann bottleneck describes the fundamental limitation of separating memory from processing — the two are connected by a single channel that everything must pass through. The memory wall is the quantitative trend that made that bottleneck dominant: because compute scaled faster than memory bandwidth for decades, the shared channel became the choke point. AI workloads, which move enormous amounts of data per operation, sit right on top of both.

How do you break the memory wall?

There are three broad strategies. The first is to use very fast on-chip memory like SRAM — it has excellent bandwidth, but tiny capacity, so a large model must be split across hundreds of chips. The second is to use faster off-chip memory like HBM — more bandwidth, but the data still has to travel across a package, which is exactly the distance that costs the energy. The third, and the one PhantaField pursues, is to eliminate the distance entirely: grow the memory directly on top of the compute in a monolithic 3D stack, so a weight sits a few hundred nanometers above the unit that uses it. When the memory is that close, bandwidth stops being a scarce resource and the wall effectively disappears.

The memory wall is not a memory problem. It is a distance problem.
PhantaField

Frequently asked questions

What is the memory wall in simple terms?: It is the growing gap between how fast a chip can do calculations and how fast it can get data from memory. Because compute improved much faster than memory bandwidth, modern processors spend most of their time waiting for data rather than computing.
Why is the memory wall a problem for AI?: Generating each token of a large language model requires reading the entire model's weights from memory. The math is cheap; moving the weights is expensive. So AI inference is limited by memory bandwidth, not by raw compute — especially at low batch sizes.
Is the memory wall the same as the von Neumann bottleneck?: They are related. The von Neumann bottleneck is the fundamental limit of separating memory from compute. The memory wall is the trend — compute outscaling memory bandwidth — that made that bottleneck the dominant constraint in modern computing.
How can the memory wall be solved?: By moving memory closer to compute. SRAM and HBM widen or speed up the data path but keep memory separate. Monolithic 3D integration removes the distance altogether by growing memory directly above the logic, so data travels microns instead of centimeters.
